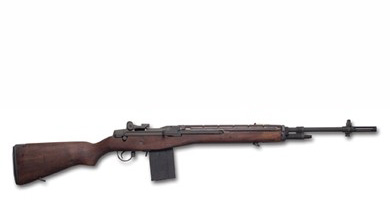

Springfield M14

Calibre 7.62x51mm NATO
Weight 3950g
Length 1067mm
Barrel Length 559mm
ROF 700-750rpm
Magazine 20
Range 800m

In general, the M14 was an outdated design at the moment of its adoption. It had the accuracy and range of "old time" military rifles, but was too long, heavy and lacked the selective fire firepower of a true assault rifle, required in the modern combat. Nevertheless, it was a reliable and powerful weapon, often favored by users for high lethality, long range and good penetration.

The M14 is a gas operated, magazine fed, selective fire (originally) design. The gas system is located under the barrel, and has a short stroke (about 1 1/2 inch - 37 mm) gas piston which operates the M1 Garand style action rod. The gas system features an automatic gas cutoff feature, which limits the amount of gases used to operate the weapon. The rotating bolt is quite similar to one found in M1 Garand but it has a roller instead of the simple lug, which connects the bolt to the operating rod. The fire mode selector is located at the right side of the receiver, above the trigger, and could be removed if rifle should not be fired in bursts, or re-installed if required. The rear receiver bridge features the stripper clips guides, so the detachable magazine could be refilled in place by using standard stripper clips. The bolt stop device is incorporated into the left wall of the receiver and holds the bolt open when last round from the magazine is fired. The safety switch is similar to M1 Garand and is located at the front of the triggerguard. Standard sights consist of the blade front sight with two protective "ears" and diopter-type adjustable rear sight, mounted on the rear of the receiver.
