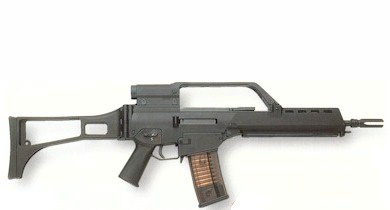

The G36 is a radical departure from all the previous HK rifles, based on the proven G3 roller-delayed system. The G36 is a conventional gas operated, selective fire rifle, made from modern materials and using the most modern technologies. The receiver and most of the other external parts are made from reinforced polymers, with steel inserts where appropriate. The operating system uses a short stroke gas piston, located above the barrel, square-shaped bolt carrier and the typical rotating bolt with 7 locking lugs. The bolt carrier rides on a single guide rod, with the return spring around it. The charging handle is attached to the top of the bolt carrier and can be rotated to the left or to the right. When not in use, the charging handle aligns itself with the axis of the weapon under the pressure of its spring, and reciprocates with the bolt group at the top of the receiver. The gas block is fitted with the self-adjustable gas valve, that expels all the used gases forward, away from the shooter. The ejection window is located at the right side of the receiver and features a spent cases deflector to propel the ejected cases away from the face of the left-handed shooter.

The side-folding, sturdy skeletonized buttstock is standard on all G36 rifles. It folds to the right side and does not interfere with rifle operation when folded. The standard sighting equipment of the G36 consists of the TWO scopes - one 3.5X telescope sight below, with the second 1X red-dot sight above it. The sights are completely independent, with the former suitable for long range accurate shooting, and the latter suitable for the fast target acquisition at the short ranges. Both sights are built into the plastic carrying handle.
