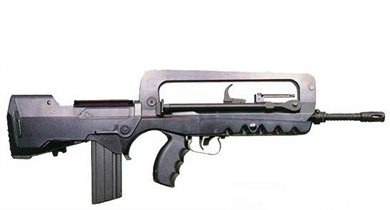

GIAT FAMAS G2



Calibre 5.56x45mm NATO
Weight 3800g
Length 757mm
Barrel Length 488mm
ROF 950rpm
Magazine 30
Range 400m


FAMAS stands for Fusil d'Assaut de la Manufacture d'Armes de St-Etienne (Assault Rifle by St-Etienne Arms Factory - a member of the French govt. owned GIAT Industries concern). The FAMAS assault rifles are built using the bullpup layout, with the magazine housing behind the pistol grip and trigger. The gun is built around the compact receiver, which is enclosed in the plastic housing. FAMAS is one of the relatively rare systems that uses a lever delayed blowback action, originally invented by the Hungarian designer Paul de Kiraly prior to the Second World War, and improved by the Paul Tellie for the FAMAS rifle. The firing mechanism unit is contained in the detachable plastic housing just behind the magazine port. The unit is linked to the trigger by the long trigger rod, and the safety / fire selector is located within the triggerguard, just ahead of the trigger. The selector has 3 positions for safe, single shots, and automatic fire. Additional three-rounds bursts module is built into the firing mechanism housing, with the additional selector under the housing, behind the magazine, that allows for the unlimited full automatic fire or 3 rounds burst modes to be selected.

The sighting system of the FAMAS consists of the blade front and the diopter rear sight, adjustable for range and with two flip-up apertures, for good visibility and low light conditions. Both sights are mounted on the pillars, that are in turn mounted on the receiver, and concealed by the large plastic carrying handle.
